CASPER II

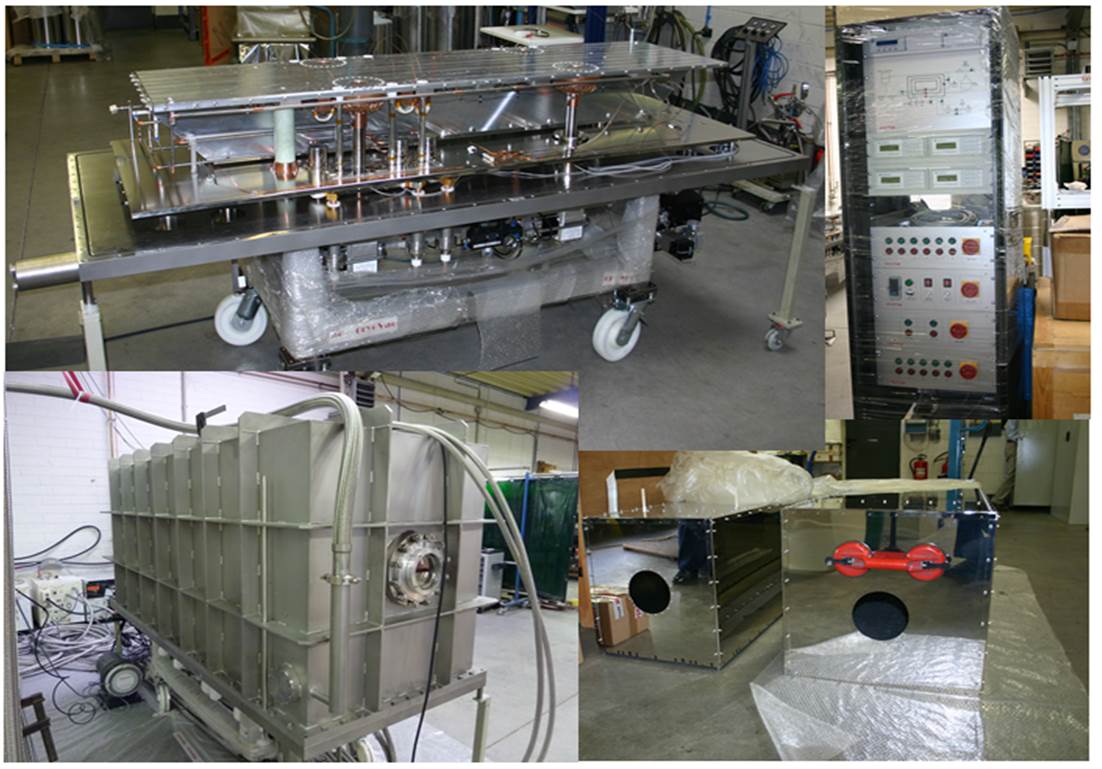

CASPER II, located at Campus North of KIT, is a horizontal, cryogen-free test stand that will be used to perform quality certification (max. length 1500 mm, max. diameter 500 mm) of new superconducting systems and insertion devices. It will also serve to test small prototype coils in a cryogen-free environment. The magnetic field along the beam axis will be measured by Hall probes fixed to a sledge moved by a linear stage. The precisions are ΔB<1 mT and Δz<1 μm. Field integral measurements will be performed using the stretched wire technique. Local and integral field measurements are made in the same thermal cycle: the wire is stored in the guiding rails of the Hall probe sledge when the Hall probe is in use. When the Hall probe is fully retracted and clear of the gap, the stretched wire can be pulled out. For details see the CASPER II publications below.

CASPER2   CASPER2 Daigram

Publications - CASPER II


2016
Characterization of 30-cm-Long Superconducting Undulator Coils With the Magnetic Measurement System CASPER II.
Grau, A.; Casalbuoni, S.; Gerstl, S.; Glamann, N.; Holubek, T.; Saez de Jauregui, D.; Voutta, R.; Boffo, C.; Gerhard, T.; Turenne, M.; Walter, W.
2016. IEEE transactions on applied superconductivity, 26 (4), Art. Nr.: 4100804. doi:10.1109/TASC.2016.2523806
2015
First characterization of a superconducting undulator mockup with the CASPER II magnetic measurement system.
Gerstl, S.; Casalbuoni, S.; Glamann, N.; Grau, A.; Holubek, T.; Saez de Jauregui, D.; Voutta, R.; Boffo, C.; Gerhard, T.; Turenne, M.; Walter, W.
2015. 6th International Particle Accelerator Conference, PAC2015, Richmond, Virginia, USA : 3rd-8th May 2015 
Characterization of 30 cm long superconducting undulator coils with the magnetic measurement system CASPER II.
Grau, A.; Casalbuoni, S.; Gerstl, S.; Glamann, N.; Holubek, T.; Saez de Jauregui, D.; Voutta, R.; Boffo, C.; Gerhard, T.; Turenne, M.; Walter, W.
2015. 24th International Conference on Magnet Technology (MT 2015), Seoul, Korea, October 18-23, 2015 
First characterization of a superconducting undulator mockup with the CASPER II magnetic measurement system.
Gerstl, S.; Casalbuoni, S.; Glamann, N.; Grau, A.; Holubek, T.; Saez de Jauregui, D.; Voutta, R.; Boffo, C.; Gerhard, T.; Turenne, M.; Walter, W.
2015. Proceedings of the 6th International Particle Accelerator Conference : (IPAC 2015) : Richmond, Virginia, USA : 3rd-8th May 2015, 2815–2817, JACoW, CERN, Geneva. doi:10.18429/JACoW-IPAC2015-WEPMA027Full textFull text of the publication as PDF document
