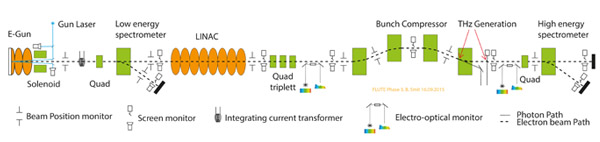

Layout
Overview and parameters of the core accelerator designed for the FLUTE facility. A key feature is the large dynamic range in charge and bunch length to probe different regimes in beam dynamics and diagnostics.
Parameters and Layout
| Energy | a few MeV and up to 90 MeV |
| Repetition Rate | single pulse and up to 50 Hz |
| Electron Bunch Charge | spanning several orders of magnitude up to 1 nC |
| Electron Bunch Length | spanning several orders of magnitude and as short as 1 fs |
| Spectral Band Coverage | up to 30 THz |
| THz E-field strength | up to 1 GV/m |
